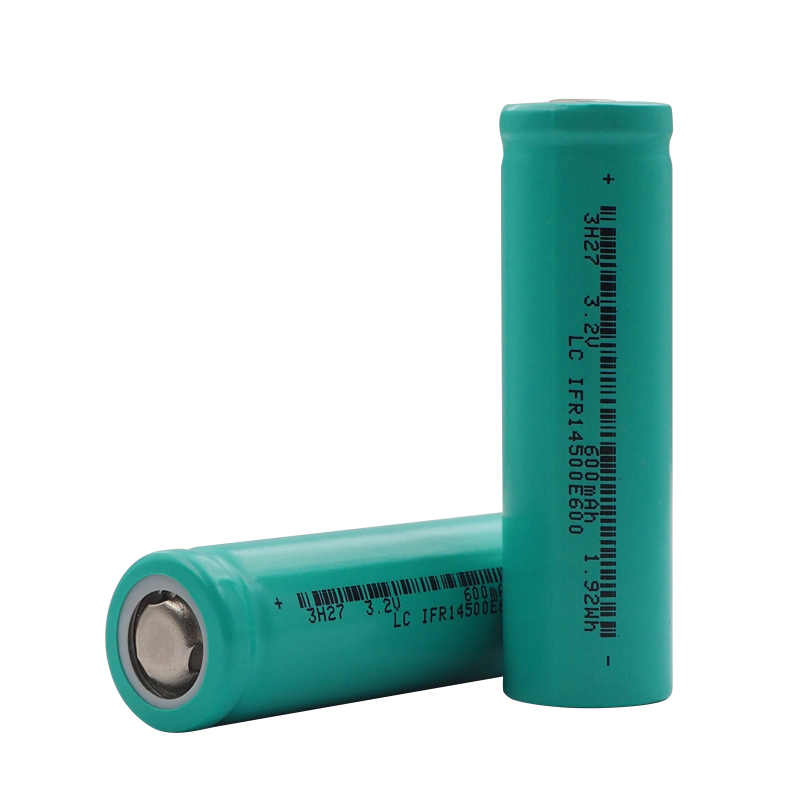

IFR14500 3.2V 600mah Cylindrical LFP rechargeable lithium ion battery
- Product Code: IFR14500
- Availability: In Stock
$1.50
- Ex Tax: $1.50
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension Φ=14.1±0.2mm H=49.7±0.5mm
3. Nominal Capacity: 600mAh
4. Nominal Voltage: 3.2V
5. Limited Charging Voltage: 3.65V
6. Recommended Charging Conditions The cells shall be charged at constant voltage to 3.65V, then charging with constant voltage 3.65V while tapering the charge current to 6mA(0.01C5), Charging shall be cut-off.
7. Max. Continuous Discharge Current: 1800mA
8. Cycle Life: 2000cycles [Capacity≥80% (600mAh)]
9. Weight: Approximately 18g
10. Internal Resistanc: ≤60mΩ 11. Temperature Charge: 0~+60°C Discharge: -20~+60°C Storage: -20~+45°C (1 month) -20~+35°C (3 months) -20~+25°C (6 months)
