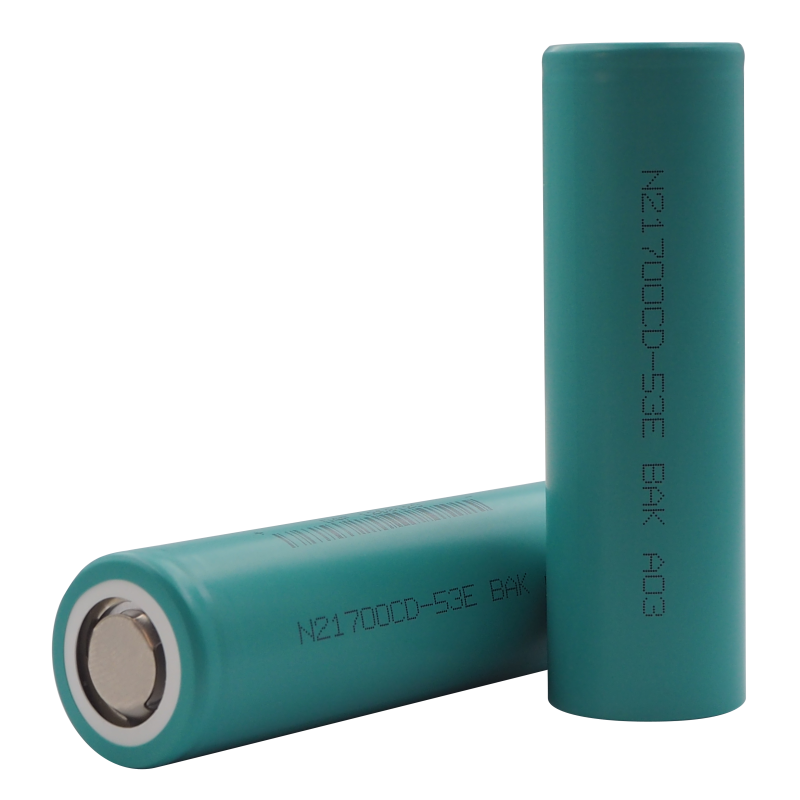

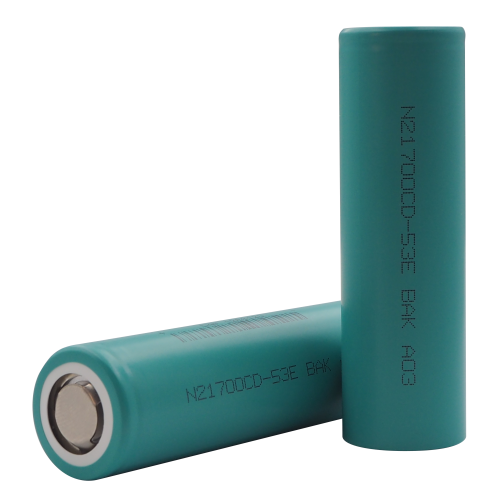

ICR21700 5300mAh high capacity 3.6V rechargeable Lithium-ion battery

 Model: N21700CD-53E
●  Nominal Capacity: 5300mAh
●  Minimum Capacity: 5150mAh
●  Nominal Voltage: 3.6V
●  Charging Method: CC-CV
●  Charging Voltage: 4.2V
●  Maximum Charge Current: 5300mA
●  Maximum Discharge Current: 10.6A
●  Cycle Life: Capacity ≥ 80% @ after 500cycles(80% of the Rated Discharge Capacity @ RT)
    - Charge: 0.5C constant current charge to 4.20V followed by 4.20V constant voltage charge to cut-off current≤ 0.01C (51.5mA)；
    - Discharge: 1C constant current discharge to cut-off voltage≤2.5V.
●  Maximum Dimensions: D-21.4mm, L-70.75mm
●  Storage Temperature:
    -1 year: -20~25℃
    -3 months: -20~45℃
    -1 month: -20~60℃
